Description
Identification of Cores :
| Twin-Cores | : | Light-Blue, Black |
| Three-Cores | : | System I Green with yellow stripe ( G/Y ), Blue, Brown System O Brown, Black, Grey |
| Four-Cores | : | System I Green with yellow stripe ( G/Y ), Brown, Black, Grey System O Blue, Brown, Black, Grey |
| Five-Cores | : | System I Green with yellow stripe ( G/Y ), Blue, Brown, Black System O Blue, Brown, Black, Grey, Black |
| Above Five Cores | : | Black with white number |

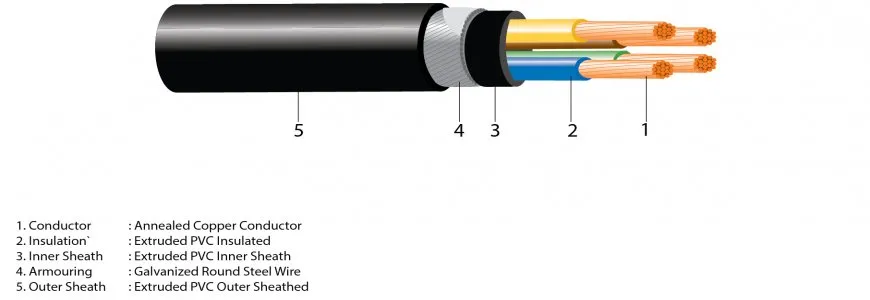

Construction:
Annealed Copper Conductor
Extruded PVC Insulated
Extruded PVC Inner Sheath
Galvanized Round Steel Wire
Extruded PVC Outer Sheated
Special Features on Request:
Oil Resistance
Flame Retardant Cat A, B, C
Flame Retardant Non Category
Nylon Coated
Symbol : NYRGbY or CU/PVC/SWA/PVC
| Size Ranged | : | 6 x 1.5 … 6mm² 5 x 1.5 … 50mm² 4 x 10 … 400mm² 3 x 10 … 400mm² 2 x 10 … 300mm² |
| Applicable Standard | : | Rated Voltage : 0.6/1 kV |
| Specification | : | SPLN 43-2 : 1994 SNI IEC 60502-1 2009 IEC 60502 Other Specification are available on request |
| Application | : | Indoor and outdoor installation direct burial |
