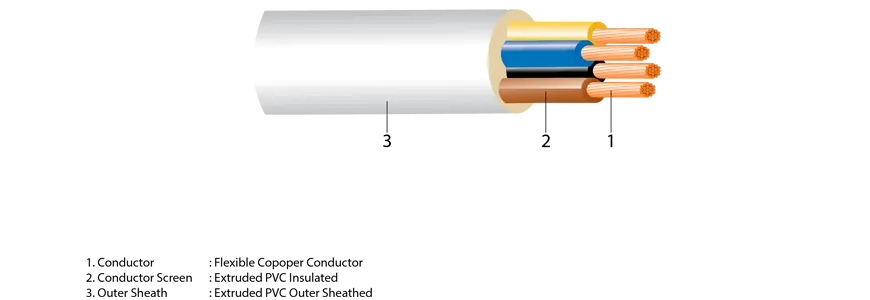

NYMHY

NYMHY

Fiber Optic & Copper Cables

Fiber Optic Accessories

Description

Identification of Cores :

Twin-Cores : Light-Blue, Black
Three-Cores : System I
Green with yellow stripe ( G/Y ), Blue, BrownSystem O
Brown, Black, Grey
Four-Cores : System I
Green with yellow stripe ( G/Y ), Brown, Black, GreySystem O
Blue, Brown, Black, Grey
Five-Cores   : System I
Green with yellow stripe ( G/Y ), Blue, Brown, Black, GreySystem O
Blue, Brown, Black, Grey, Black



Construction :

Flexible Copper Conductor
Extruded PVC Insulated
Extruded PVC Outer Sheathed
Symbol    :    NYMHY



Size Ranged :    2 x 0.75 … 2.5mm²
3 x 0.75 … 2.5mm²
4 x 0.75 … 2.5mm²
5 x 0.75 … 2.5mm²
Applicable Standard :  Rated Voltage: 350/500 Volt
Specification :  SPLN 42-6-2-1991
SNI 04-6629.5 2006
IEC 60227-5 IEC
Other Specification are available on request
Application : Indoor location connection or portable application

Construction

Core
No. of		 Size Conductor Wall Thickness Approx
Overall
Diameter		 Approx
Net. Weight		 Standard
Length		 Packing
Construction No. of Wire Insulation Sheath
mm – – mm mm mm Kg/Km m –
2 0.75 f 24 0.6 0.8 7.8 83 100 Coil
2 1 f 32 0.6 0.8 8.2 93 100 Coil
2 1.5 f 30 0.7 0.8 9.4 124 100 Coil
2 2.5 f 50 0.8 1.0 11.0 179 100 Coil
3 0.75 f 24 0.6 0.8 8.2 95 100 Coil
3 1 f 32 0.6 0.8 8.6 107 100 Coil
3 1.5 f 30 0.7 0.9 10.1 151 100 Coil
3 2.5 f 50 0.8 1.1 11.9 217 100 Coil
4 0.75 f 24 0.6 0.87 8.9 112 100 Coil
4 1 f 32 0.6 0.8 9.6 133 100 Coil
4 1.5 f 30 0.7 1.0 11.0 184 100 Coil
4 2.5 f 50 0.8 1.1 12.9 263 100 Coil
5 0.75 f 24 0.6 0.9 9.9 139 100 Coil
5 1 f 32 0.6 0.9 10.4 158 100 Coil
5 1.5 f 30 0.7 1.1 12.1 223 100 Coil
5 2.5 f 50 0.8 1.2 14.2 320 100 Coil
