N2XKY, NA2XKY

NA2XKY

Fiber Optic & Copper Cables

Fiber Optic Accessories

Description

Rated Voltage              : 1.8/3 kV (3.6 kV)
Ref. Specification        : IEC 60502 – 2

Symbol
Applicable Standard    :    Other Specification are available on request

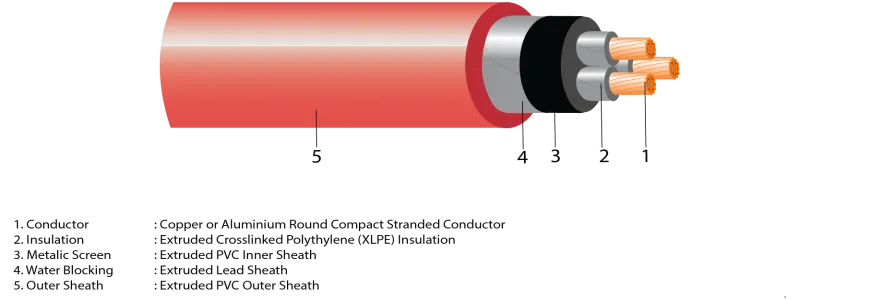

Construction

Construction
Copper or Alumunium Conductor
Extruded Crosslinked Polyethylene (XLPE) Insulation
Extruded PVC Inner Sheath
Extruded Lead Sheath
Extruded PVC Outer Sheath

Conductor Nominal Wall Thickness Approx Overall Diameter Approx Net Weight Standard Length Maximum DC Conductor Resistance at 20 C Minimum Insulation Resistance at 20 C Maximum Continous Current Carrying Capacity Maximum Short Circuit Current at 1 sec. Approx. Capacitance per phase Approx. Reactance per Phase at 50 MHz
In Air at 30 C In Ground at 30 C
Type Nom. Size Approx. Diameter Insulation Lead Sheath Outer Sheath
– mm2 mm mm mm mm mm kg/km m Ohm/km M.Ohm.km A A kA uF/Km Ohm/km
COPPER
25 6.0 2.0 1.4 2.1 32 2745 500 0.727 1000 153 145 3.60 0.25 0.093
35 7.0 2.0 1.5 2.1 34 3322 500 0.524 1000 184 172 5.00 0.28 0.089
50 8.2 2.0 1.6 2.2 37 4047 500 0.387 1000 220 204 6.55 0.32 0.085
70 9.8 2.0 1.7 2.4 42 5167 500 0.268 1000 273 249 9.46 0.37 0.081
95 11.5 2.0 1.8 2.5 46 6501 500 0.193 1000 330 295 13.13 0.43 0.079

120 12.9 2.0 1.9 2.6 49 7709 500 0.153 1000 378 339 16.57 0.47 0.77
150 14.2 2.0 2.0 2.7 53 5933 500 0.124 1000 426 376 20.44 0.51 0.075
185 16.1 2.0 2.1 2.9 58 7277 300 0.0991 1000 483 425 25.58 0.58 0.074
240 18.4 2.0 2.3 3.1 64 13663 300 0.0754 1000 567 489 33.62 0.65 0.072
300 20.4 2.0 2.4 3.3 69 16328 250 0.0601 1000 640 548 42.18 0.71 0.071

ALUMUNIUM
25 6.0 2.0 1.4 2.1 32 2273 500 1.200 1000 116 110 2.40 0.25 0.093
35 7.0 2.0 1.5 2.1 34 2666 500 0.868 1000 142 135 3.35 0.28 0.089
50 8.2 2.0 1.6 2.2 37 3159 500 0.641 1000 174 156 4.31 0.32 0.085
70 9.8 2.0 1.7 2.4 42 3886 500 0.443 1000 210 194 6.23 0.37 0.081
95 11.5 2.0 1.8 2.5 46 4720 500 0.320 1000 258 231 8.63 0.43 0.079

120 12.9 2.0 1.9 2.6 49 5465 500 0.253 1000 294 264 10.91 0.47 0.77
150 14.2 2.0 2.0 2.7 53 3158 500 0.206 1000 331 295 13.40 0.51 0.075
185 16.1 2.0 2.1 2.9 58 3811 300 0.164 1000 378 333 16.83 0.58 0.074
240 18.4 2.0 2.3 3.1 64 9104 300 0.125 1000 441 382 22.09 0.65 0.072
300 20.4 2.0 2.4 3.3 69 10111 250 0.100 1000 504 430 27.61 0.71 0.071

Maximum Permissible Continous Conductor Temperature    90 C
Maximum Short Time Overload Temperature         130 C
Maximum Short Circuit Conductor Temperature         250 C
Minimum Bending Radius                   18 x D
Standard Packing                   Wooden Drum
