AL/XLPE/PVC/SWA/PVC

AL XLPE PVC SWA PVC

Fiber Optic & Copper Cables

Fiber Optic Accessories

Description

Identification of Cores

Twin-Cores : Light-Blue, Black
Three-Cores : Light-Blue, Yellow, Black
Four-Cores : Light-Blue, Red, Yellow, Black
Five-Cores  : Green, Light-Blue, Red, Yellow, Black

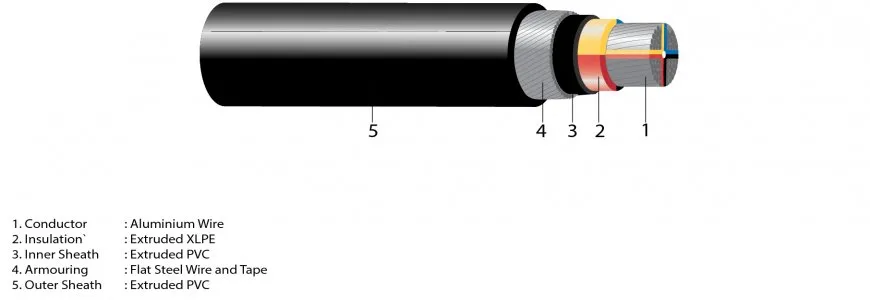

Construction

Conductor  : Aluminium wire
Insulation : Extruded XLPE
Inner Sheath : Extruded PVC
Armouring : Flat Steel Wire and Tape?
Outer Sheath : Extruded PVC



Symbol :    AL/XLPE/PVC/SWA/PVC

Size Ranged  :    4 x 35 … 500mm²

3 x 35 … 500mm²

2 x 35 … 300mm²
Applicable Standard : Specification :  IEC 60502-1

SPLN 43-7

Other Specification are available on request

Other Specification are available on request
Application : Indoor and outdoor

Installation direct buria;

Preferably use where considerable mechanical stress must be envisaged.

Construction

No. Of core size Conductor Wall Thickness Approx Overall Diameter Approx Net. Weight Standard Length Packing
Contruction No. Of wire Insulation Sheath
– mm⊃2; – – mm mm mm kg/km m –
2 35 rm 7 0.9 1.8 27.3 1358 1000 Drum
2 50 rm 19 1.0 1.9 30.5 1641 1000 Drum
2 70 rm 19 1.1 2.0 35.7 2324 1000 Drum
2 95 rm 19 1.1 2.1 39.7 2798 1000 Drum
2 120 rm 37 1.2 2.3 43.5 3290 500 Drum
2 150 rm 37 1.4 2.4 49.1 4307 500 Drum
2 185 rm 37 1.6 2.6 53.9 5068 300 Drum
2 240 rm 61 1.7 2.7 60.1 6123 300 Drum
2 300 rm 61 1.8 2.9 65.3 7098 300 Drum
